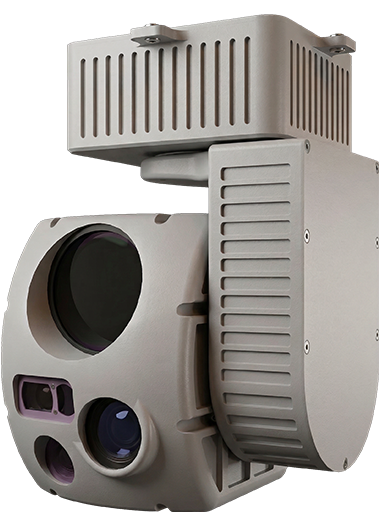

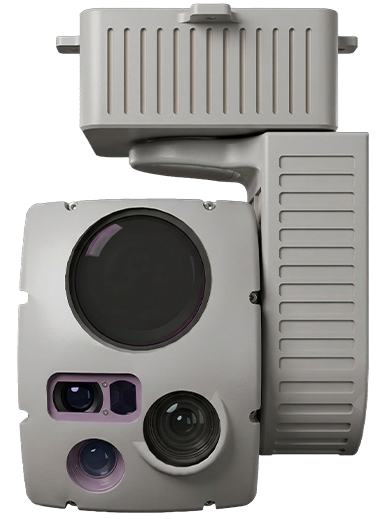

SPECTRUM 800 PLUS
SPECTRUM 800 PLUS

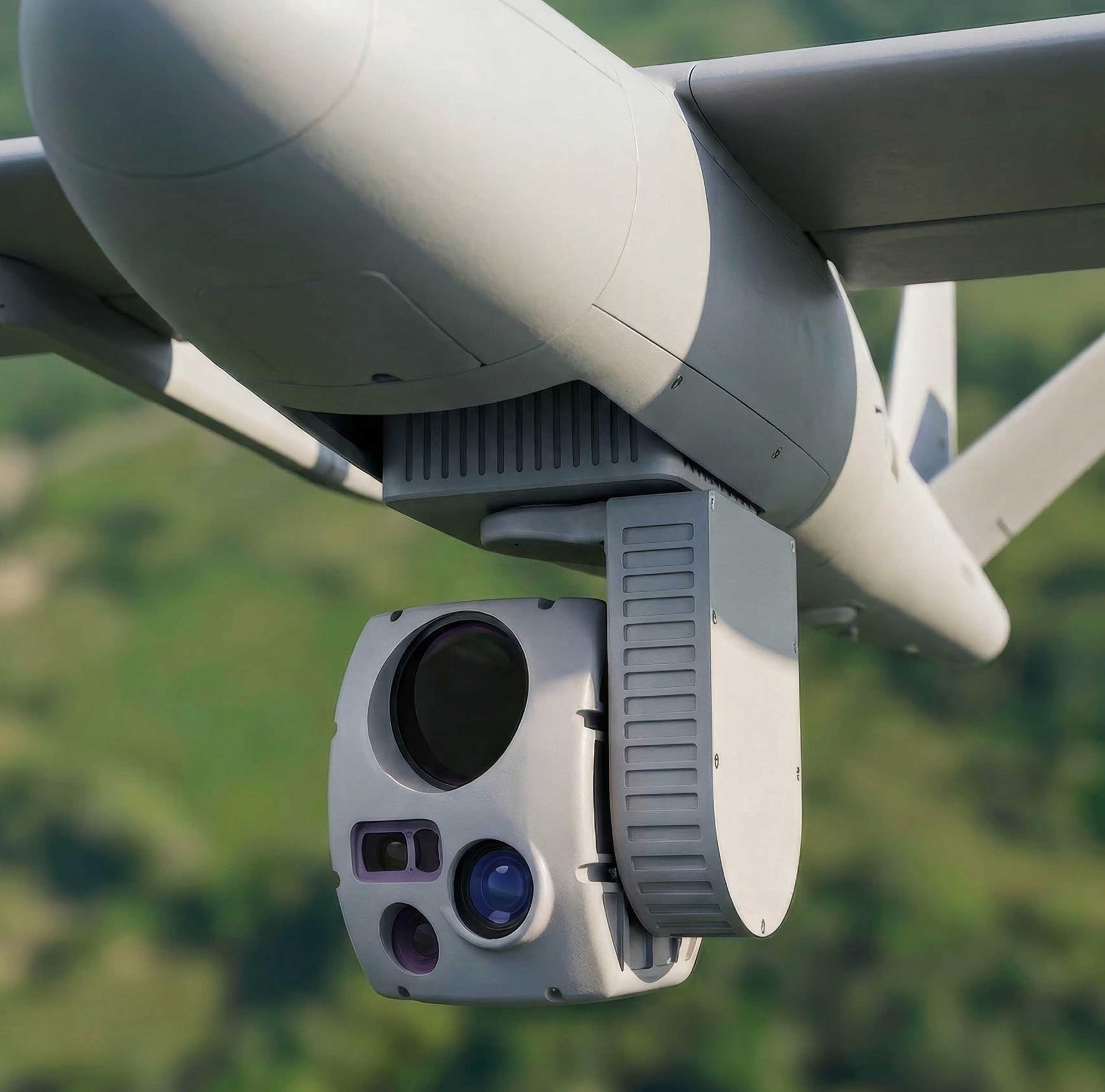

Blitz Spectrum 800PLUS is a high-performance multi-sensor platform developed for extended-range tactical missions. Built with an IP66-rated magnesium alloy housing, it delivers outstanding durability while maintaining a lightweight design.
Engineered for stability under movement, Spectrum 800PLUS preserves a consistent line of sight and provides dependable, high-quality imaging in fast-changing operational environments with 20x optical EO zoom capability.
S E N S O R S
EO SENSORS
ZOOM - x80 (20x optical x 4x digital)
Resolution - 1920x1080p (Full HD)
Field of View (FOV) - 60° WFOV – 2.4° NFOV– 1.2° DFOV
IR SENSOR
ZOOM - x10 digital, continuous zoom
Resolution - 640x512p
Field of View (FOV) - 12WFOV, 1.2 DFOV
LRF
CLASS 1 eye safe (1535nm)
FREQUENCY 1 - 4 Hz
ACCURACY ± 1 METER
Range 3km for NATO-sized human target
ILLUMINATOR
300mW (850 nm)
1mrad Beam divergence (Class 3B)
Round Shape
Technical Data
Resolution - 1920x1080p (Full HD)
Field of View (FOV) ???
Resolution - 640x512p
Field of View (FOV) - 12WFOV, 1.2 DFOV
FREQUENCY 1 - 4 Hz
ACCURACY ± 1 METER
Range 3km for NATO-sized human target
1mrad Beam divergence (Class 3B)
Round Shape
Proven Global
Performance.
Clients in United States, Europe, Australia and Asia have integrated the system onto platforms, and it continues to operate successfully on a total of 18 different platforms.
15+ ACTIVE COUNTRIES
INCLUDES ALL BLITZ PRODUCT
NDAA
COMPLIANT
