SPECTRUM 1650MS
SPECTRUM 1650 MS

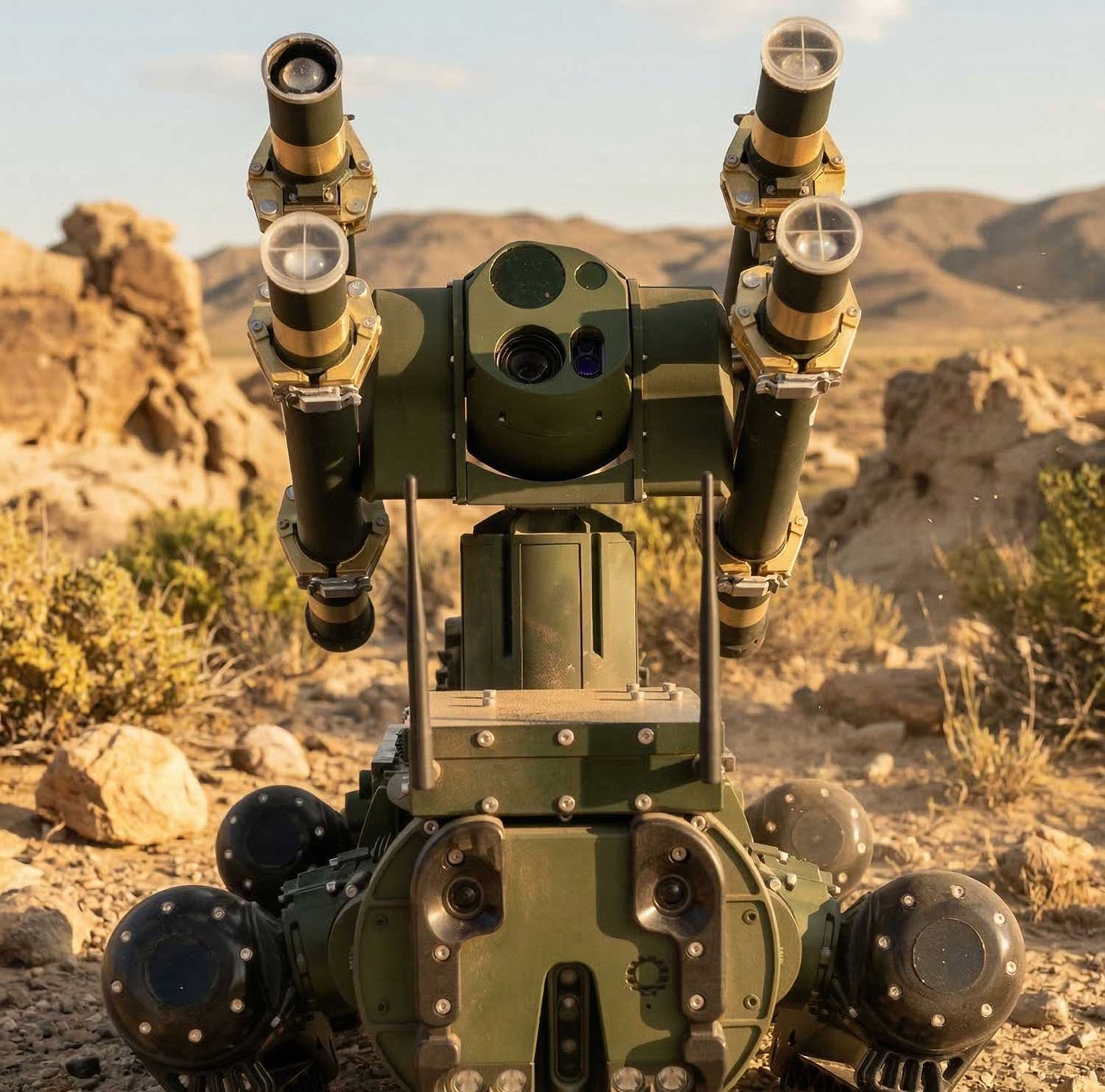

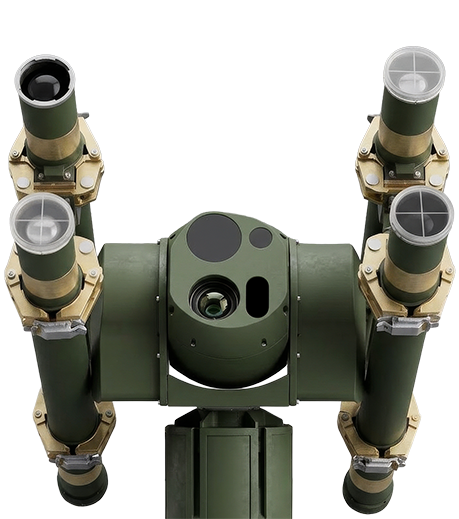

Blitz Spectrum 1650 MS, multi sensor system is a gimbal-based missile launch system developed specifically for specialized land and air platforms. Engineered for flexibility, precision, and operational superiority, this system represents a new generation of stabilized, multi-mission launch capabilities.
Multi-Missile “JUMBO” Configuration
At the heart of the system is our JUMBO configuration, a unique platform capable of carrying and deploying four different 40 mm laser-guided missiles simultaneously. This configuration provides unmatched versatility and mission adaptability in a compact and stabilized architecture.
S E N S O R S
EO SENSORS
Zoom — ×120 (×30 optical + ×4 digital)
Resolution - 1920x1080p (Full HD)
FOV — 63.7° WFOV / 2.3° NFOV / 0.53° DFOV
IR SENSOR
Zoom — ×10 (5x optical x 2x digital)
Resolution — 640×512
FOV — 24° WFOV / 8.78° NFOV / 2.9° DFOV
LRF
CLASS 1 eye safe (1535nm)
FREQUENCY 1 - 4 Hz
ACCURACY ± 1 METER
Range — 5 km (NATO-sized car target)
ILLUMINATOR
300mW (850 nm)
1mrad Beam divergence (Class 3B)
Round Shape
LASER GUIDED MISSILE
40mm Diameter
50cm Length
Semi-Active Laser Guidance
1+km Range
Technical Data
The system is optimized for populated urban environments, jungle and complex terrain conditions, and imaging-supported missions requiring high stabilization and targeting precision.
Resolution — 1920×1080 (Full HD)
FOV — 63.7° WFOV / 2.3° NFOV / 0.53° DFOV
Resolution — 640×512
FOV — 24° WFOV / 8.78° NFOV / 2.9° DFOV
Frequency — 1–4 Hz
Accuracy — ±1 m
Range — 5 km (NATO-sized car target)
1mrad beam divergence (Class 3B)
Round Shape
50cm Length
Semi-Active Laser Guidance
1+km Range
